   Polar

Up

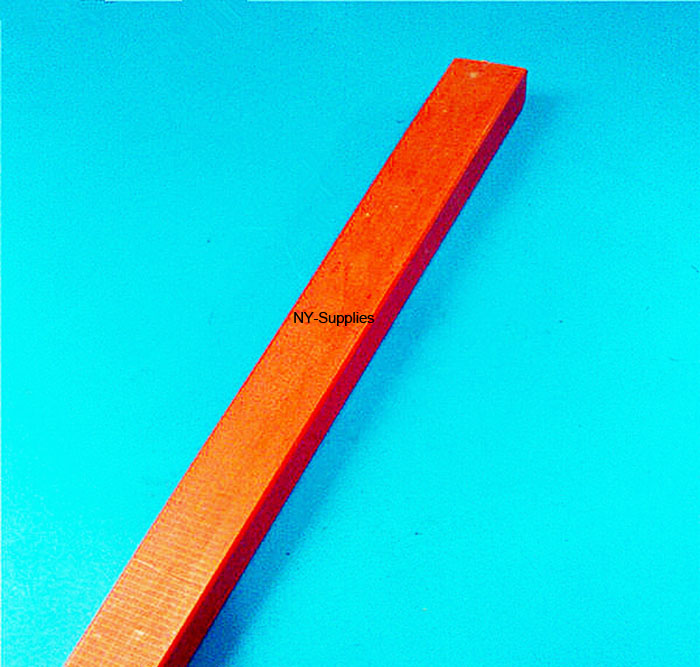

Cutting Sticks for Polar 76 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 960 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC76-CS770.4P5.10

  • Price:  $27

Cutting Sticks for Polar 92 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 930 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC92-CS930.4P5.10

  • Price: $33

Cutting Sticks for Polar 115 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 1160 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC115-1160.4P5.10

  • Price:  $42

Cutting Sticks for Polar 132 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 1330 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC132-1330.4P5.10

  • Price:  $46

Cutting Sticks for Polar 137 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 1380 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC137-1390.4P5.10

  • Price:  $50

Cutting Sticks for Polar 145 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 1460 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC145-1460.4P5.10

  • Price:  $51



Cutting Sticks for Polar 155- 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 1560 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC155-1560.4P5.10

  • Price:  $52

Cutting Sticks for Polar 176 - 12 Pack

  • 12 pieces of red, straight cutting sticks

  • 960 mm x 4.5 mm x 10 mm

  • Part #NYS-HE-PC176-1770.4P5.10

  • Price:  $59

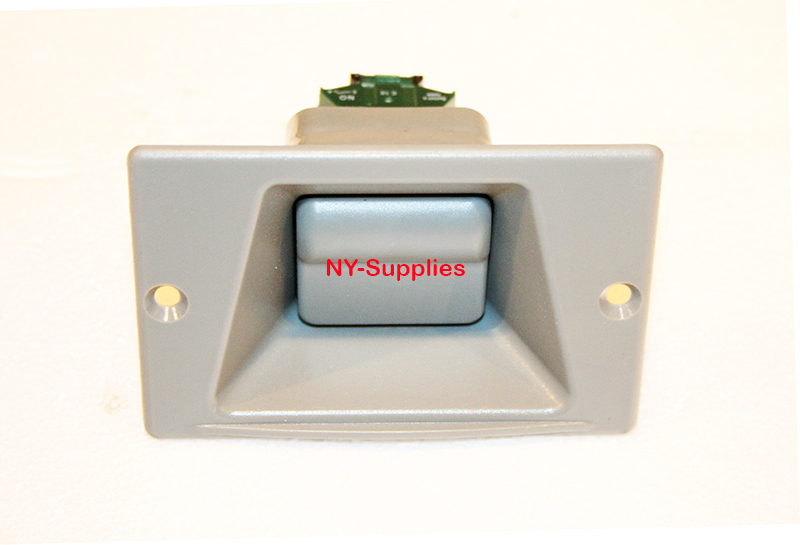

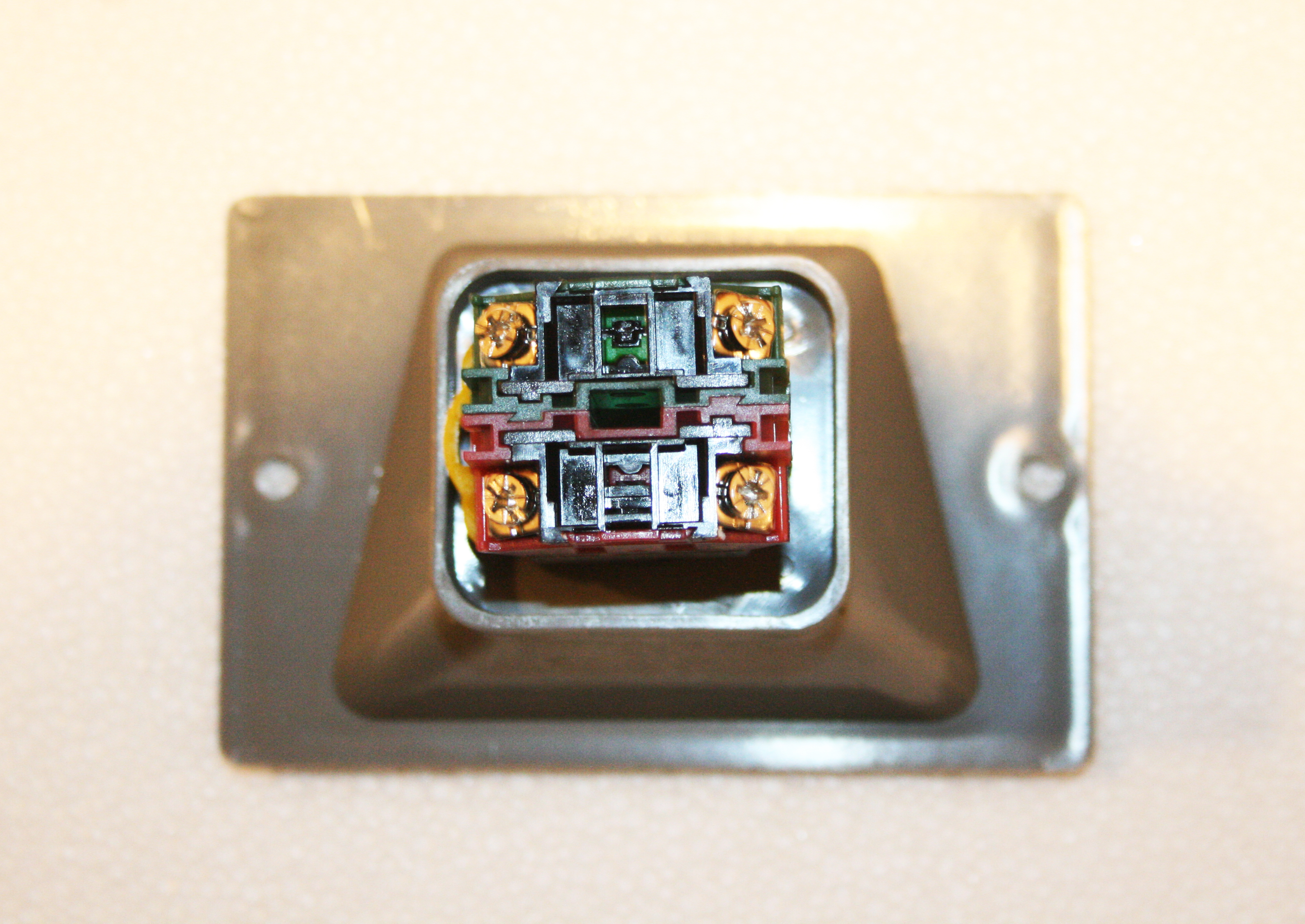

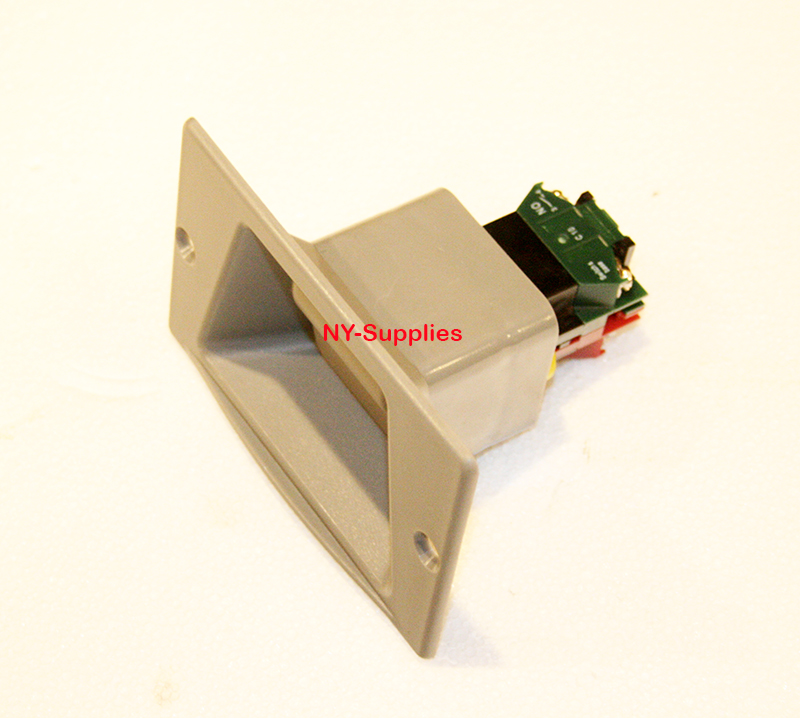

Push Button for Polar Cutters



  • Part# NYS-HE-PC-PB01

  • Price $89

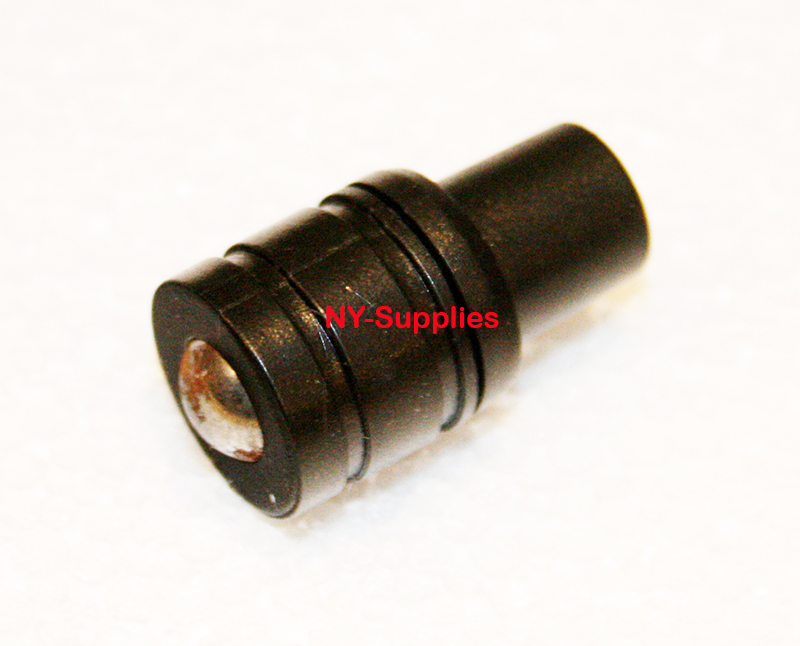

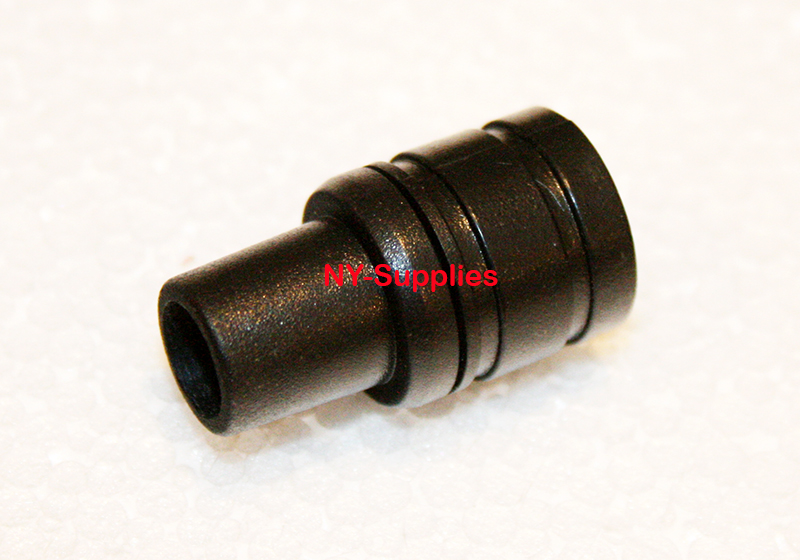

Air Jet / Air Table Valve for Polar Cutters



  • Air Jet Nozzles / Air Table Valve for early Polar paper cutters. These are used in Polar guillotine paper cutter air tables and air feed tables as well as in other industrial applications for material flotation. They allow for easy movement of stacks of paper or card stock by allowing the stock to float on a thin layer of air. Once the stock clears the button the air jet closes off to prevent wasting air. They are a press fit in the 15 millimeter diameter reamed holes in the table. They are 30 mm (1.18") long, including the height of the protruding ball. This style was generally used in earlier models of Polar cutters.

  • 15mm diameter x 30mm length

  • Part# NYS-HE-PC-AJ1530

  • Price $9.99

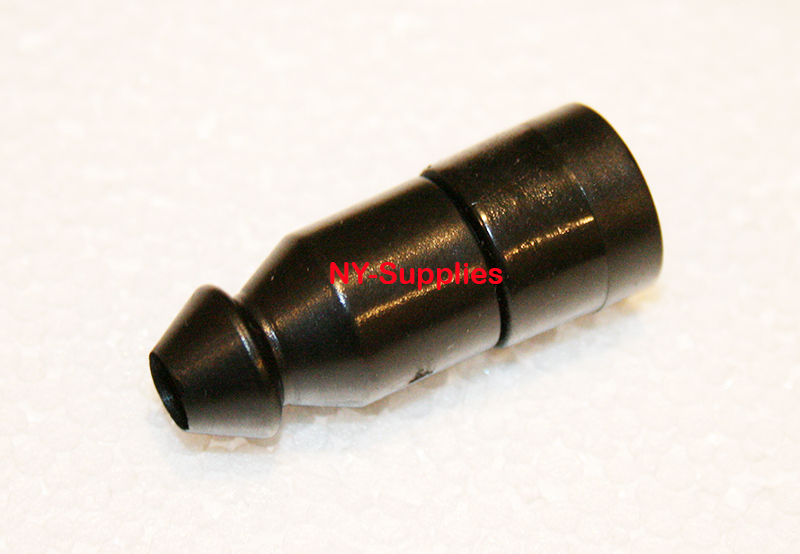

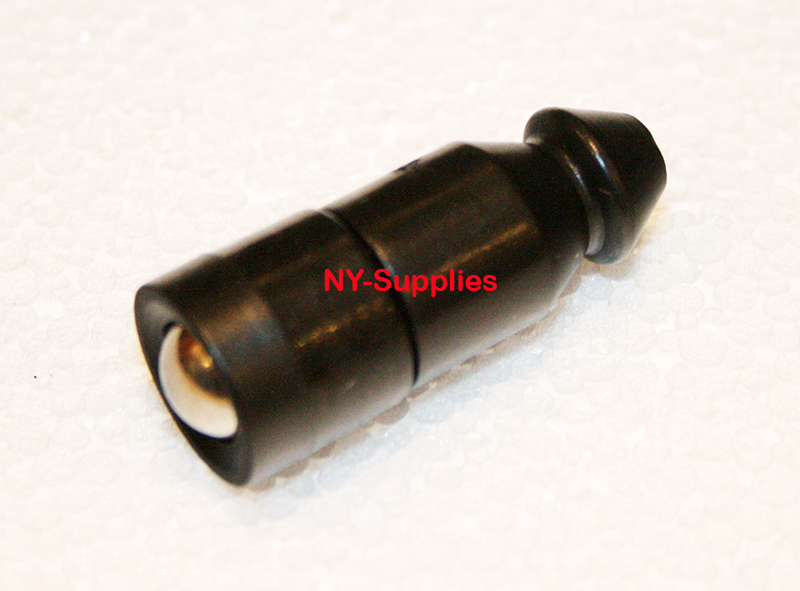

Air Jet / Air Table Valve for Polar Cutters



  • Air Jet Nozzles / Air Table Valve for Polar paper cutters. These are used in Polar guillotine paper cutter air tables and air feed tables as well as in other industrial applications for material flotation. They allow for easy movement of stacks of paper or card stock by allowing the stock to float on a thin layer of air. Once the stock clears the button the air jet closes off to prevent wasting air. They are a press fit in the 15 millimeter diameter reamed holes in the table. They are 40mm (1.57") long, including the height of the protruding ball. This style was generally used in Polar cutters built after the mid 1960's.

  • 15mm diameter x 40mm length

  • Part# NYS-HE-PC-AJ1540

  • Price $9.99

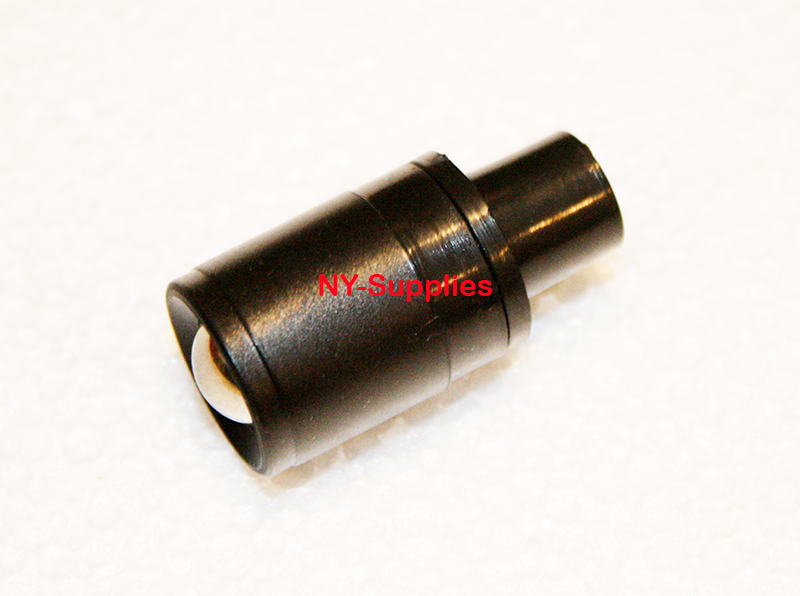

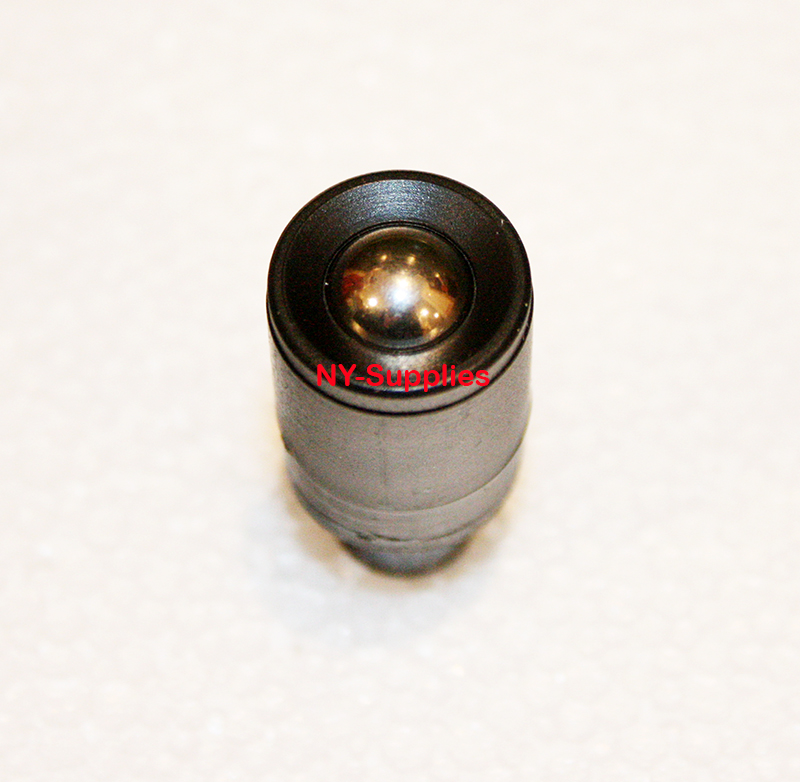

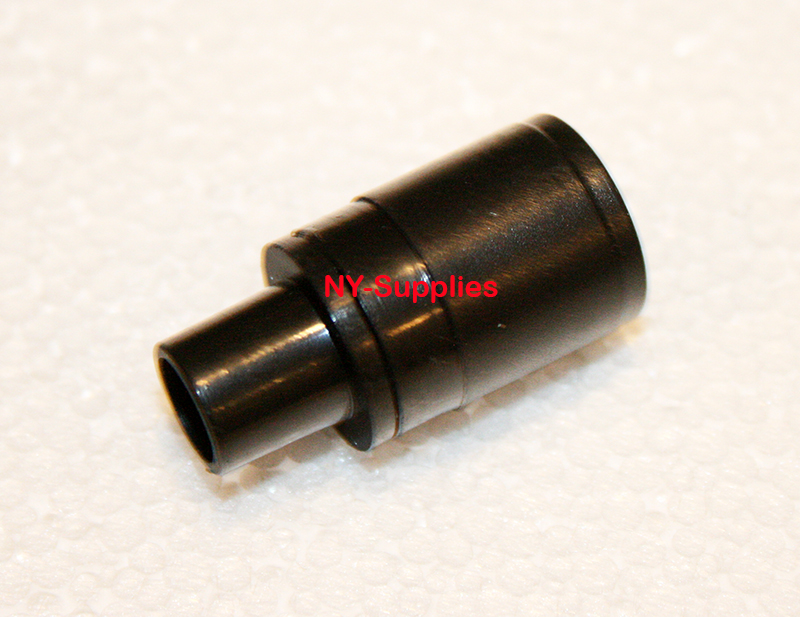

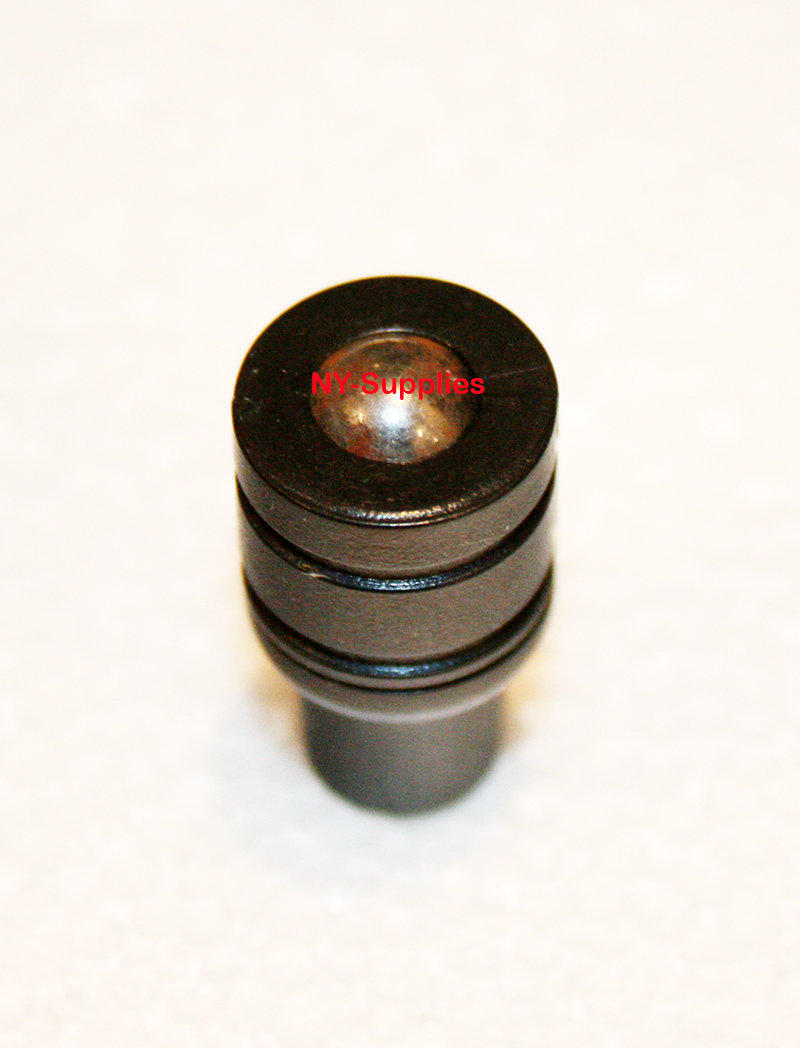

Air Jet / Air Table Valve for Polar Cutters



  • Air Jet Nozzles / Air Table Valve for early Polar paper cutters. These are used in Polar guillotine paper cutter air tables and air feed tables as well as in other industrial applications for material flotation. They allow for easy movement of stacks of paper or card stock by allowing the stock to float on a thin layer of air. Once the stock clears the button the air jet closes off to prevent wasting air. They are a press fit in the 16 millimeter diameter reamed holes in the table. They are 33 mm long, including the height of the protruding ball.

  • 16mm diameter x 33mm length

  • Part# NYS-HE-PC-AJ1633

  • Price $9.99

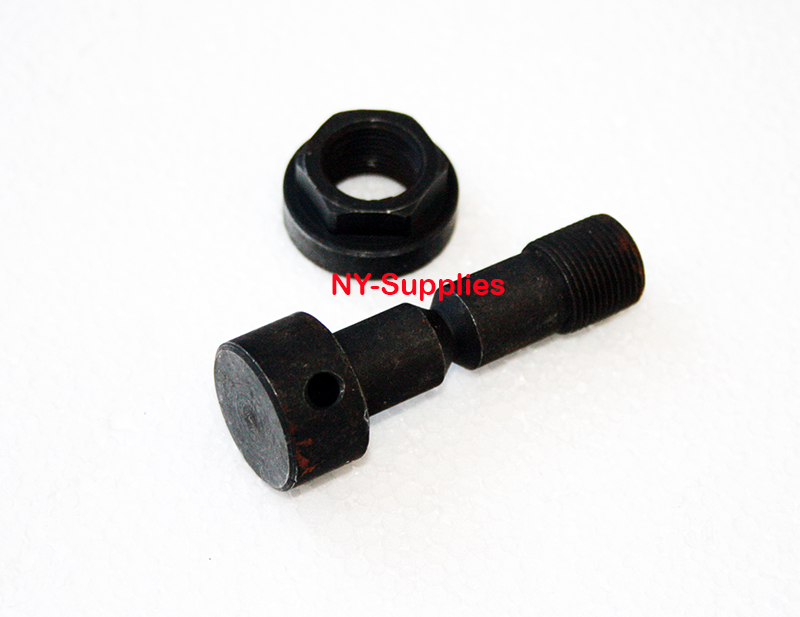

Shear Bolt for Polar Cutter 92

  • Steel Shear Pins for Polar 92 EMC II, Polar 92 MON, Polar 92 ED, Polar 92 E, Polar 92 X, and Polar 92 XT Paper Cutters. (ser # 5211248 up); (260469, 017771, 053063, S107) The main shank on this shear bolt or shear pin is 48mm (1.89") long below the head and has an M14 thread. The nut measures 19mm (.75") across the flats. Included with each of these shear pins is a mating washer faced hex nut or collar nut. (232343)
    Part# NYS-HE-P92-S107

  • Price $27



Shear Bolt for Polar Cutter 137



  • Steel Shear Pins for Polar 137 EMC II, 137 MON, 137 X, 137 XT, 137 E, and 137 ED Paper Cutters. (equivalent to Polar 231671 & 231671A, ZA3.423024, 260506) This alloy steel shear pin or shear bolt fits Polar 137 EMC II, Polar 137 MON, Polar 137 X, Polar 137 XT, Polar 137 E, and Polar 137 ED paper cutters. The main shank has an M16 (.63") thread and is 2.33" long below the head. Included with each of these shear bolts or safety bolts is a mating washer faced hex nut (collar nut equivalent to Polar 231661 & 231661A). The head is 1.18" in diameter and .39" thick and has a flat on one side as shown in the photo.

  • Part# NYS-HE-P137-S102

  • Price $39

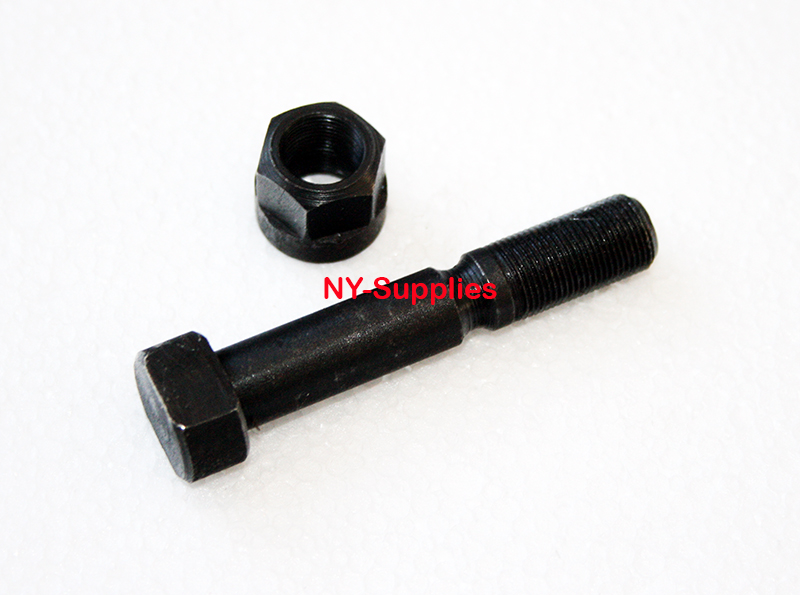

Shear Bolt for Polar Cutter 82, 86, 90, 92



  • Shear pins for Polar 82 EL, 82 CE, 86 EL, 86 CE, 90 EL, 90 CE, 92 CS, 92 EL, 92 EMC & 92 CE Paper Cutters.(206016).  These shear bolts do NOT fit the Polar 92 EMC II. The main shank on this safety bolt measures 9.75 mm in diameter, except where it is undercut. It is 54mm (2-1/8") long below the head. It has an M10 thread and two flats are cut on the sides of the head. Included with each of these shear bolts is a mating washer faced nut. (collar nut number 205525)

  • Part# NYS-HE-P82869092-S91

  • Price $27

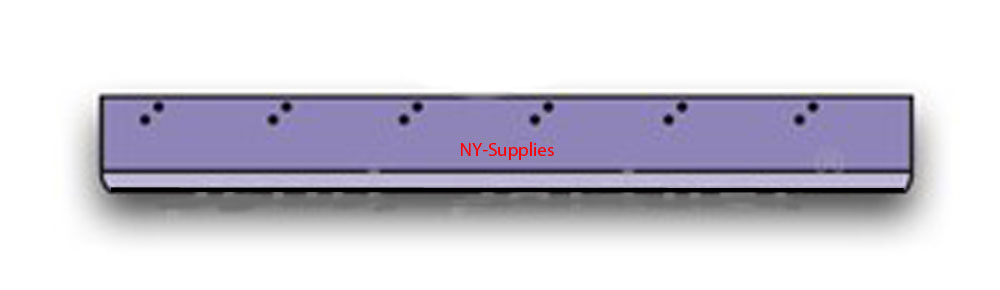

Guillotine Blade / Paper Cutter Knife

  • Application:  Polar 71, 72C, 75

  • Part NYS-HE-PC7172C75-868.104.9.712SS

  • High quality diamond cut replacement cutting blade

  • Material: Standard Steel

  • Length: 868 mm (34.173"), Width: 104 mm (4.094"), Thickness: 9.7 mm (0.381")

  • Pattern:  12 M10 Holes

  • Price:  $200



Guillotine Blade / Paper Cutter Knife



  • Application:  Polar 71, 72C, 75

  • Part NYS-HE-PC7172C75-868.104.9.712HSS

  • High quality diamond cut replacement cutting blade

  • Material: High Speed Steel

  • Length: 868 mm (34.173"), Width: 104 mm (4.094"), Thickness: 9.7 mm (0.381")

  • Pattern:  12 M10 Holes

  • Price:  $200

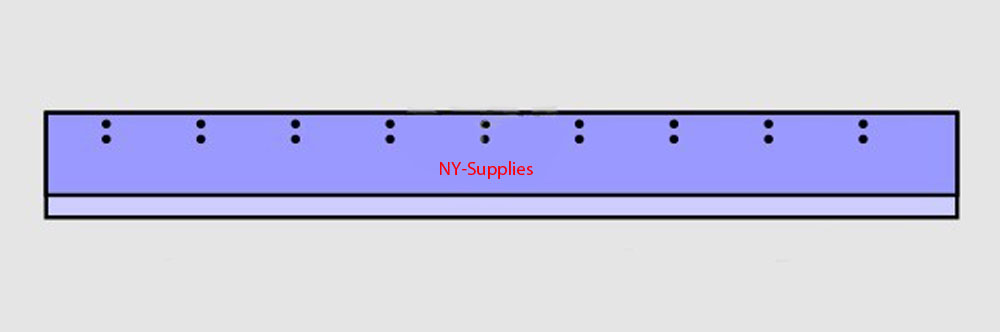

Guillotine Blade / Paper Cutter Knife

  • Application:  Polar 78 S E ED NMW

  • Part NYS-HE-PC78-960.110.11.7SS OEM 273893

  • High quality diamond cut replacement cutting blade

  • Material: Standard Steel

  • Length: 960 mm (37.795"), Width: 120 mm (4.331"), Thickness: 11.7 mm (0.461")

  • Pattern:  12 M10 Holes

  • Price:  $250



Guillotine Blade / Paper Cutter Knife

  • Application:  Polar 78 S E ED NMW

  • Part NYS-HE-PC78-960.110.11.7HSS OEM 273894

  • High quality diamond cut replacement cutting blade

  • Material: High Speed Steel

  • Length: 960 mm (37.795"), Width: 120 mm (4.331"), Thickness: 11.7 mm (0.461")

  • Pattern:  12 M10 Holes

  • Price:  $420

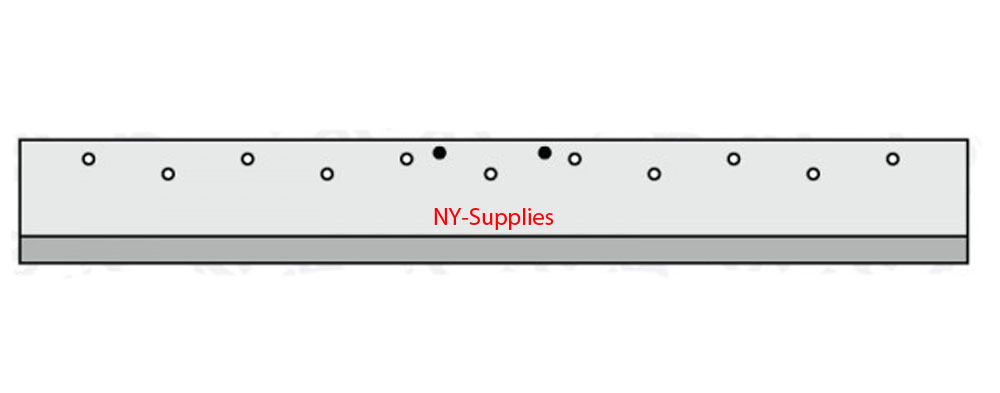

Guillotine Blade / Paper Cutter Knife

  • Application:  Polar 90 CE, 90 EL, 92 CE, 92 EL, 92 EMC

  • Part NYS-HE-PC9092-1095.115.11.75.11SS

  • High quality diamond cut replacement cutting blade

  • Material: Standard Steel

  • Length: 1095 mm (43.110"), Width: 115 mm (4.528"), Thickness: 11.7 mm (0.461")

  • Pattern:  11 M10 Holes

  • Price:  $300



Guillotine Blade / Paper Cutter Knife

  • Application:  Polar 90 CE, 90 EL, 92 CE, 92 EL, 92 EMC

  • Part NYS-HE-PC9092-1095.115.11.75.11SS

  • High quality diamond cut replacement cutting blade

  • Material: High Speed Steel

  • Length: 1095 mm (43.110"), Width: 115 mm (4.528"), Thickness: 11.7 mm (0.461")

  • Pattern:  11 M10 Holes

  • Price:  $425
